Alignment in Speedernet Sphere

Do you want to align several elements of your scene on a precise axis? Speedernet Sphere provides you with a feature that allows you to easily align several elements.

The alignment is done in three steps:

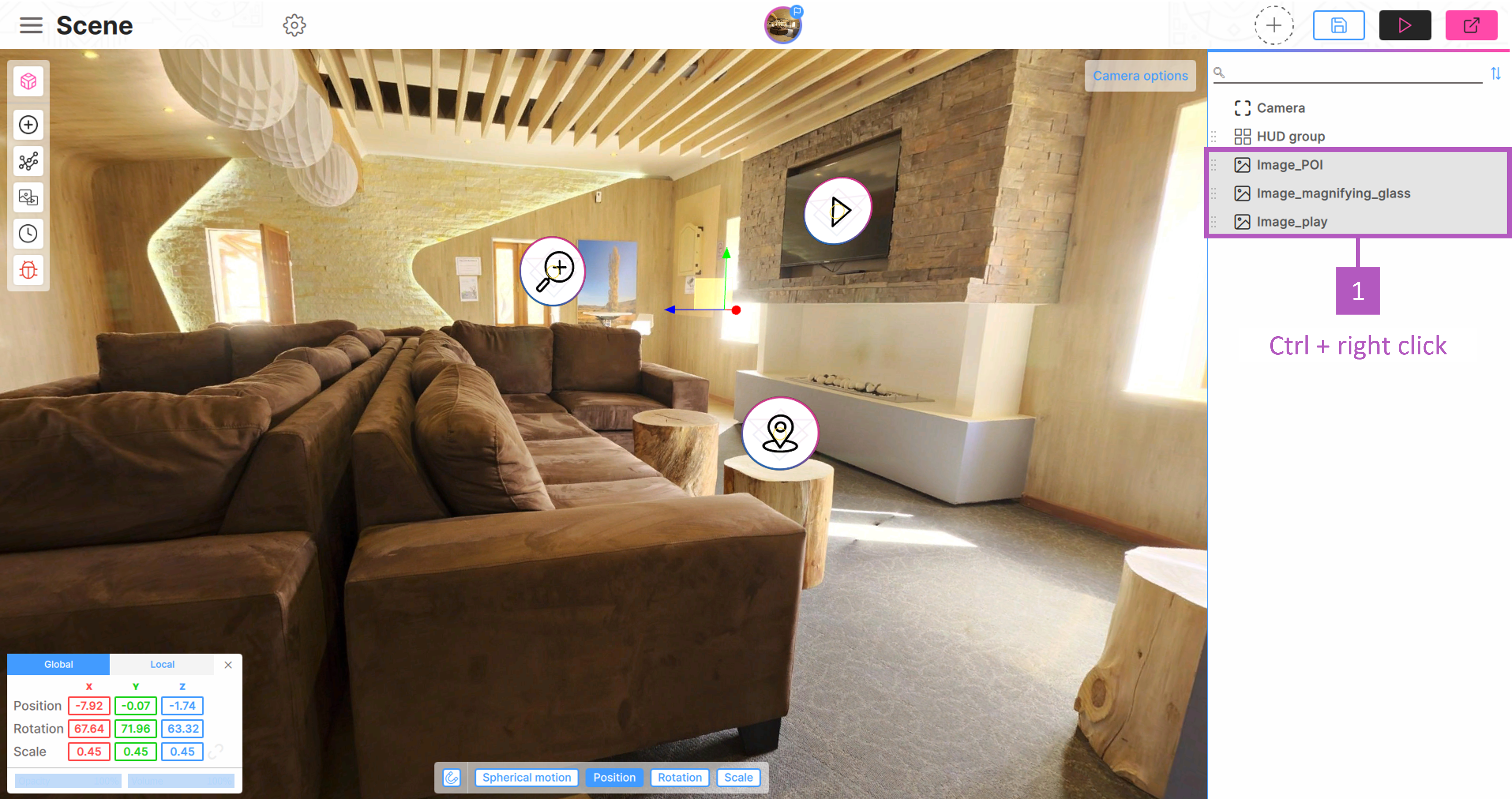

1. Hold down the Ctrl key and select the elements you want to align together. You can select them either via the element column or directly from the scene.

2. Right click the element column

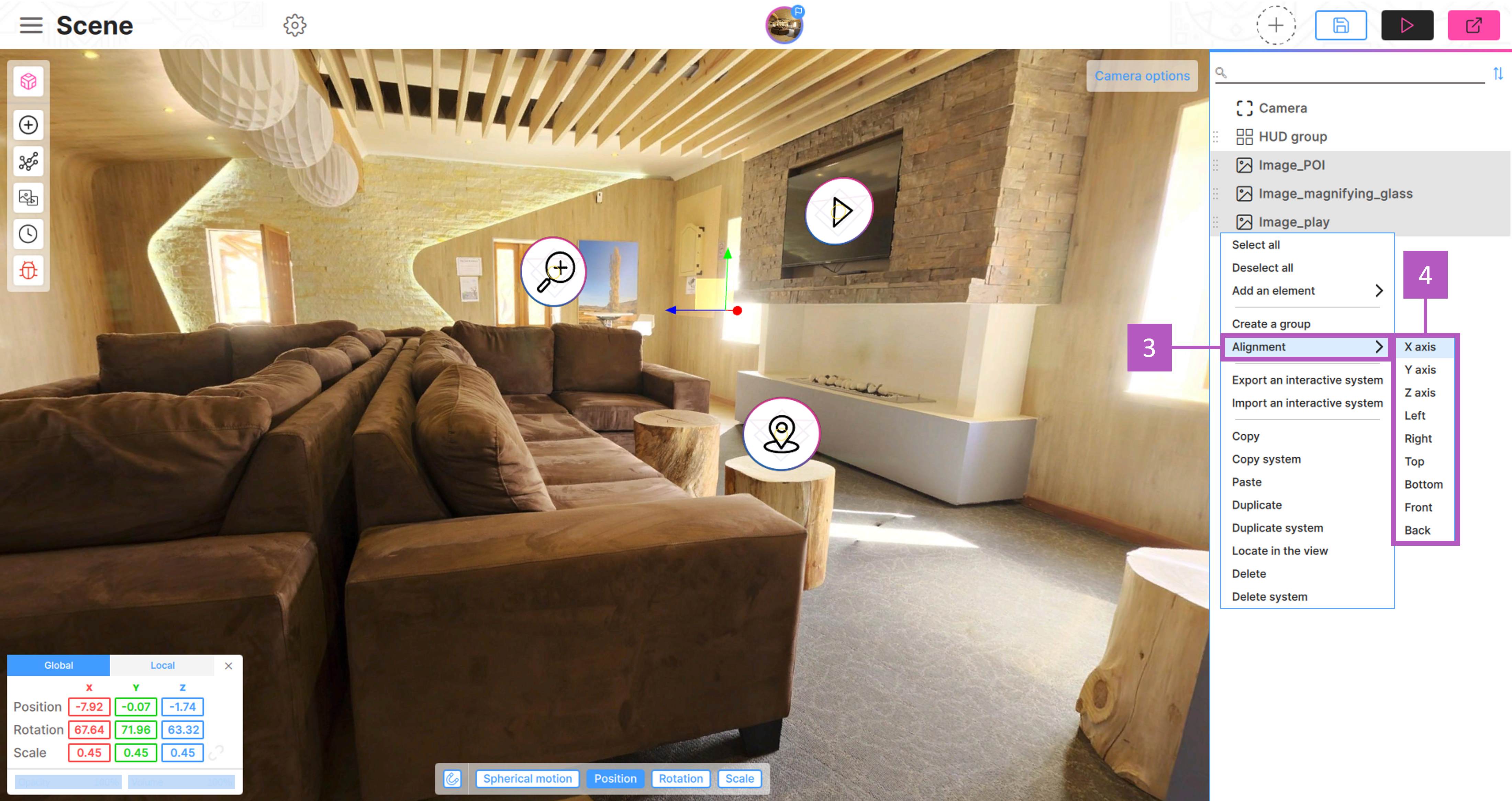

3. Click "Alignment" in the drop-down list and select the alignment you need.

Note: The first selected element (target element) is used as the basis for changes in the position of the other elements.

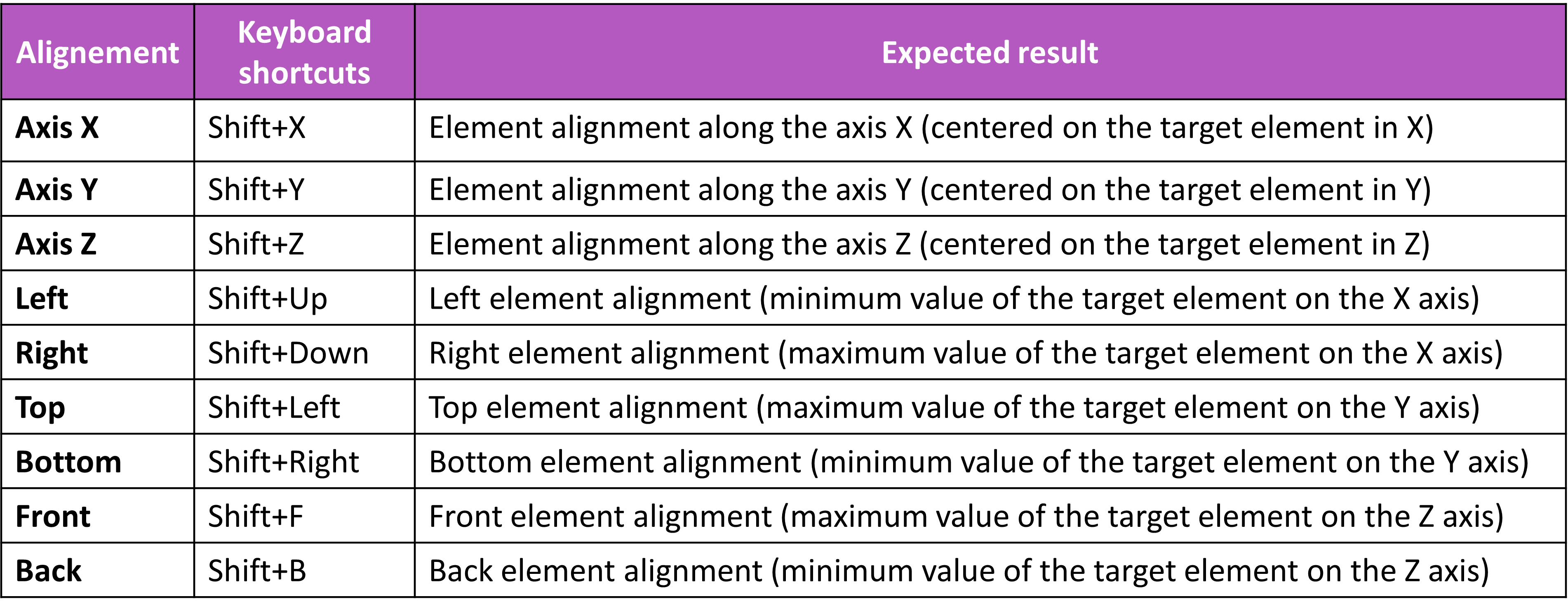

Keyboard shortcuts for alignments

You will find below the list of keyboard shortcuts that will allow you to go even faster in aligning your elements. In addition, the column "Expected result" explains the consequence of each alignment option.

Feel free to give us your feedback! 👨💻👩💻😃

See you soon in the next tutorial 🙂
